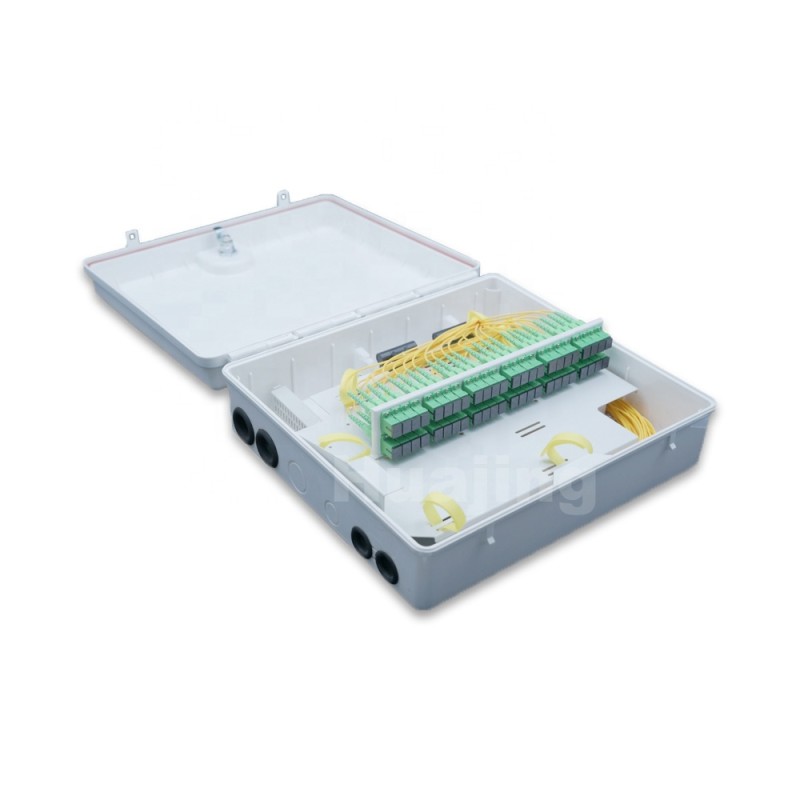

Wall / Pole Mounting Fiber Optic Distribution Box 48 Cores With Waterproof Door Lock

GFL/S Series plastic distribution box is suitable for outdoor corridor or weak current silo, can be used for local cable and drop cable end as well as sub-distribution. Meanwhile, it can be used for protective connection of cable and layout pigtails, also for optic fiber terminal of optic access network. With the advantage of light and small, it is easy to install and convenient to transport.

1. The box is made of high quality plastic synthetic material, anti-aging, anti-UV;
2. Spared pigtails and drop cables can be saved in the storage part, convenient to maintain;
3. With flipped style, splice tray is stackable, easy to operate;
4. Bi-layer structure, bottom for splicing and upper layer for splitting and distribution. The upper plugged-in splitter can be turn over, convenient to install and operate;
5. Maximum 2 pieces of splice trays suit all kinds of connection during operation.
6. Special lock device for drop cable outlet.
7. Sealed with pressed strip, the grade of waterproof and dustproof reach Ip65;
8. High quality outdoor waterproof door lock; can be installed on the wall or mounted on the pole:

• Fiber curvature radius: ≥40mm
• Additional loss of optical fiber: ≤ 0.01dB
• Temperature range: -40℃ ~ +80℃
• Anti-side pressure: ≥2000N / 10cm
• Impact resistance: 20N.m or more
• Protection class: IP65
